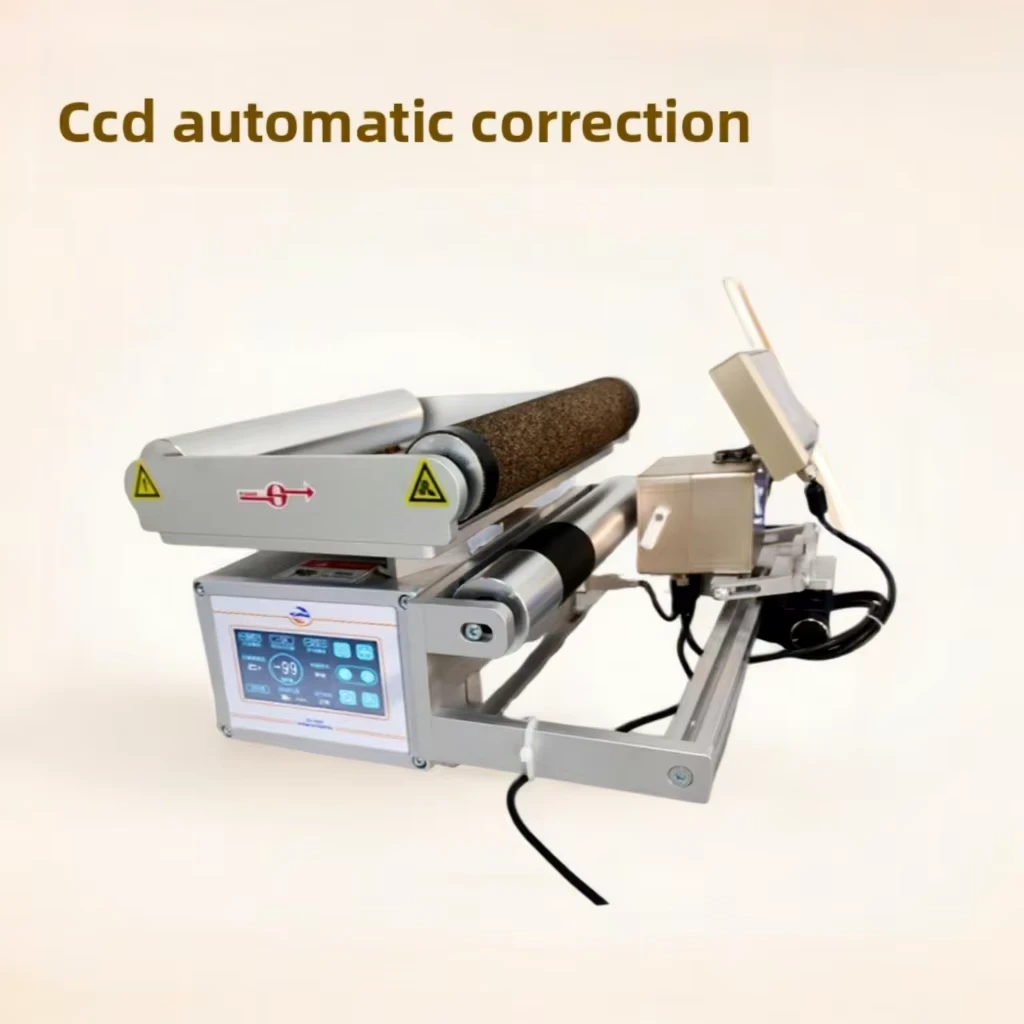

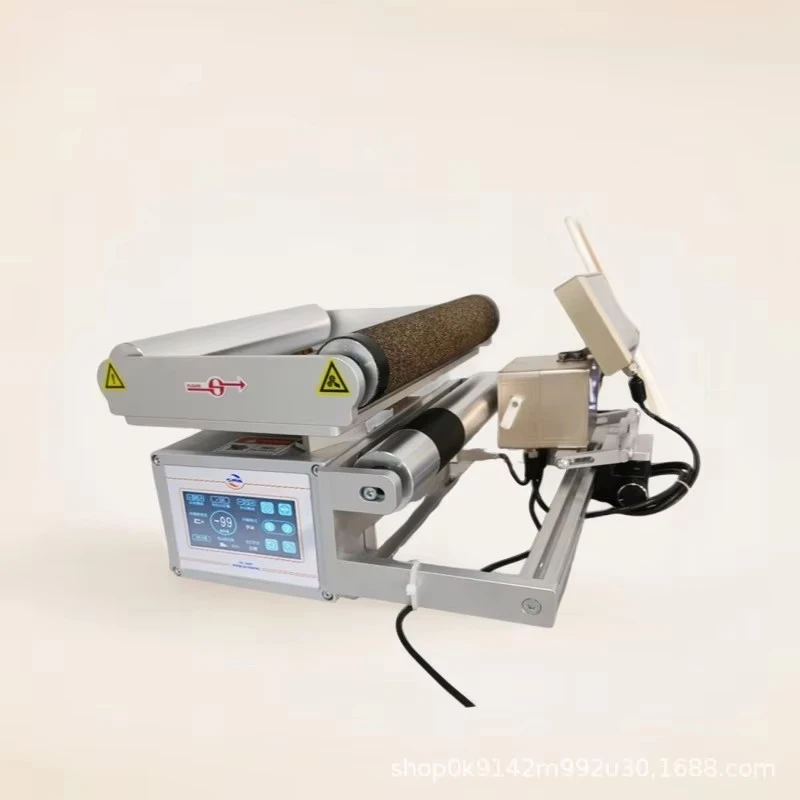

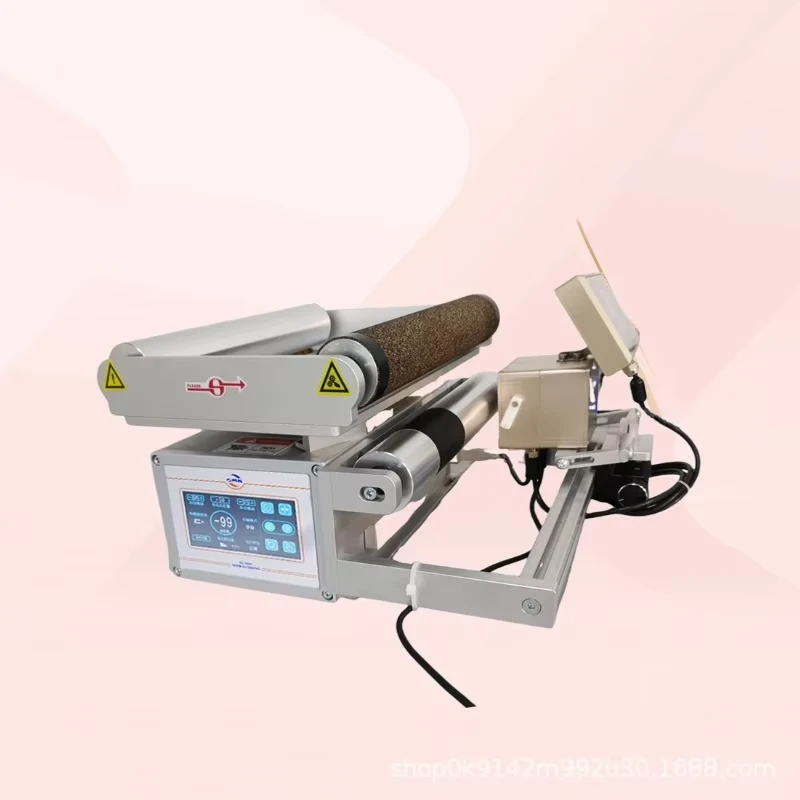

Surmach SG9600 CCD 24V Integrated Machine Deviation Correction Guiding Frame With Edge Alignment For Printing Machinery

SMK60 Web Guide ControlDevice functions:

Powerful performance: The system employs32-bit high-performance ARM processor.

MultipleInterface:Includes a variety of options such as touch screens, LCD screens, and digital displays

Simple and easy to use: The main interface allows you to complete all operations, with user convenience carefully taken into account.

IntelligencePID: Self-adaptive PID control programming ensures efficient, high-precision deviation correction.

Protection Circuit: Advanced anti-interference technology that effectively eliminates various electromagnetic interferences.

Multi-function in one device: supports edge alignment, centering,CCD alignment and edge tracking, dual-layer material tracking function.

Fully featured: Suitable for a wide range of applications, including edge inspection, centering, line tracking, and followup correction

Stable Quality: The system features built-in overcurrent, overvoltage, and overload protection to ensure long-term reliable operation.

Main Technical Parameters

Note: The above correction accuracy represents an idealcondition performance; it requires that all operating conditions be optimal, including tension stability, guide roller balance, equipment structural integrity, incoming material deviation, and proper adjustment of correction parameters
